HOW TO MEASURE YOUR WHEELBARROW BOWL
Unfortunately we do not sell one standard size of top frame as one size of top frame will not fit all wheelbarrows. Wheelbarrows have 2 types of bowl those with parallel sides and those with tapering sides and they come in many different sizes.

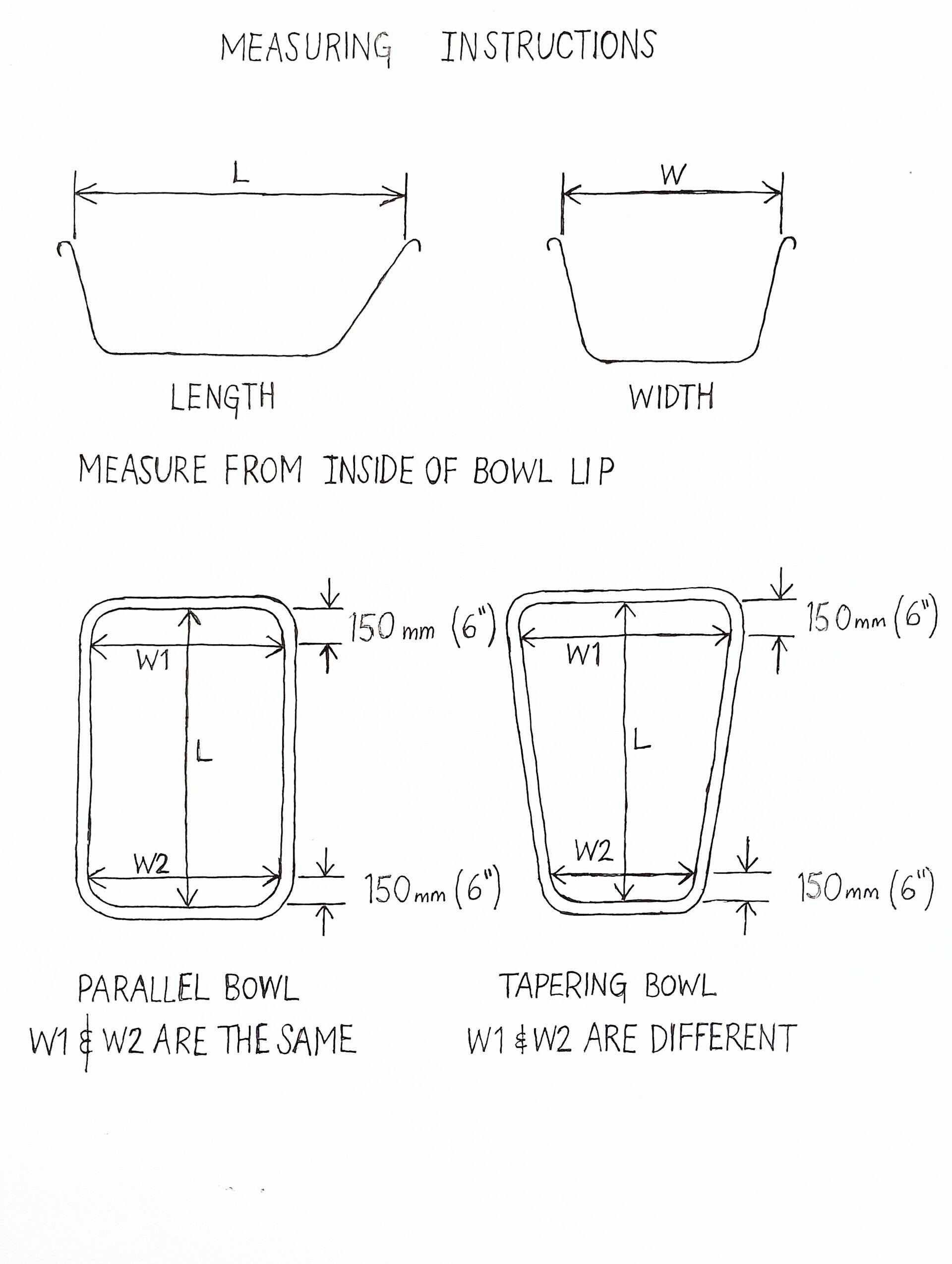

To make a bespoke top frame that fits your wheelbarrow bowl we need 3 measurements. All measurements are taken from inside the top of the wheelbarrow bowl lip (see measuring diagram below).
Length is measured along the centre of the wheelbarrow bowl.
The 2 width measurements are taken from 150mm (6 inches) into the wheelbarrow bowl from each end this avoids the curved corners of the bowl (see measuring diagram below).
By providing the 3 measurements on your order form we can supply the correct size of top frame to suit your wheelbarrow. When we have received your completed order form with all the necessary information we will then email you a PayPal invoice.
Please see below for enlargement of the above diagrams.

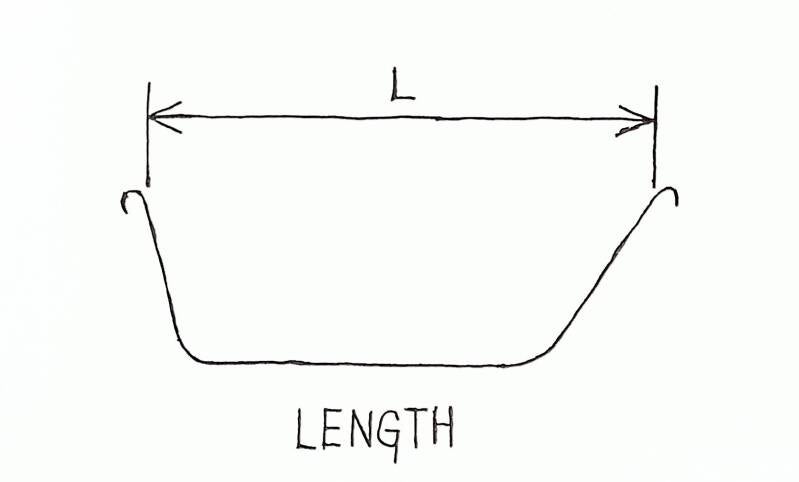

Length Measurement
Length is measured from inside of the wheelbarrow bowl lip at the top of the bowl.

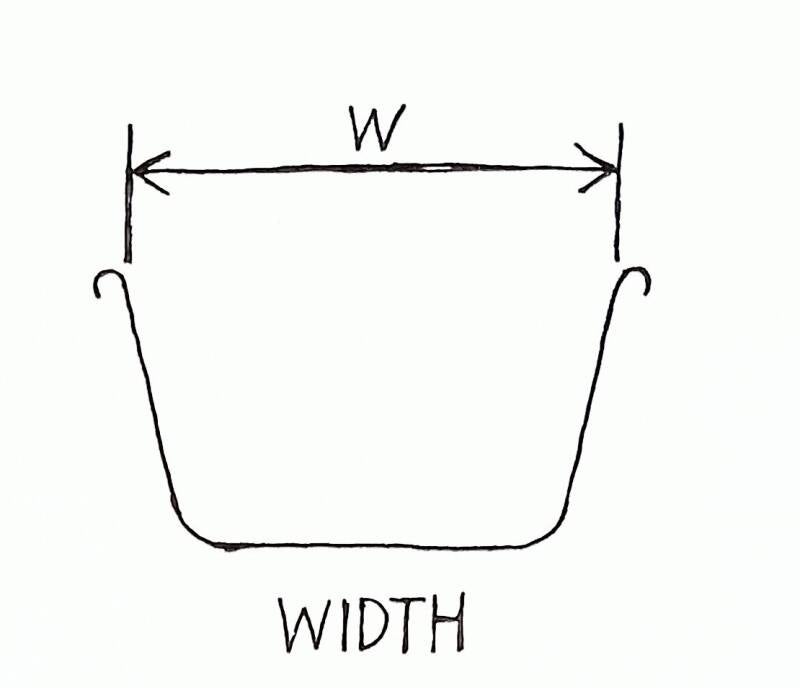

Width Measurement
Width is measured from the inside of the wheelbarrow bowl lip at the top of the bowl.
Length Measurement
Length is measured along the centre of the wheelbarrow bowl.

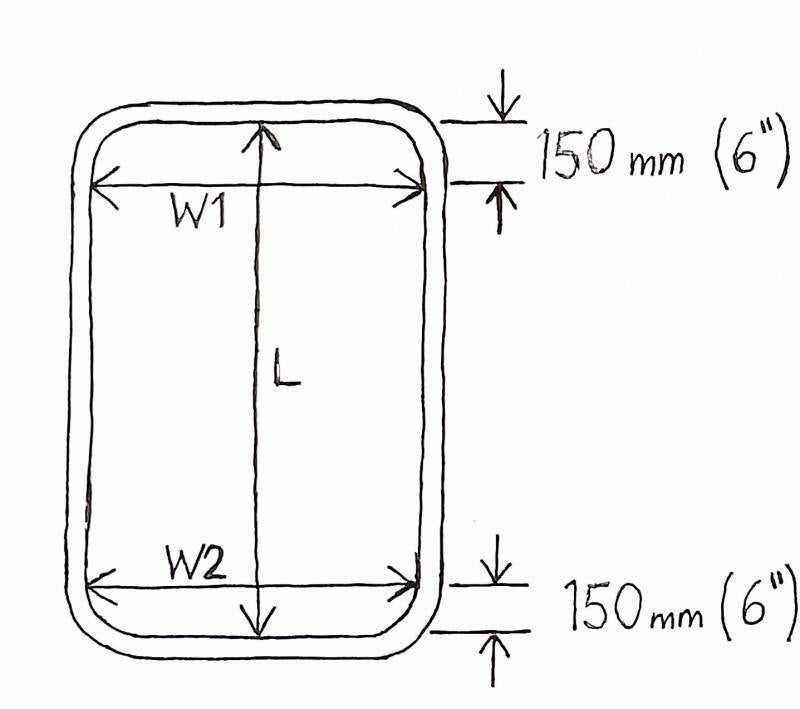

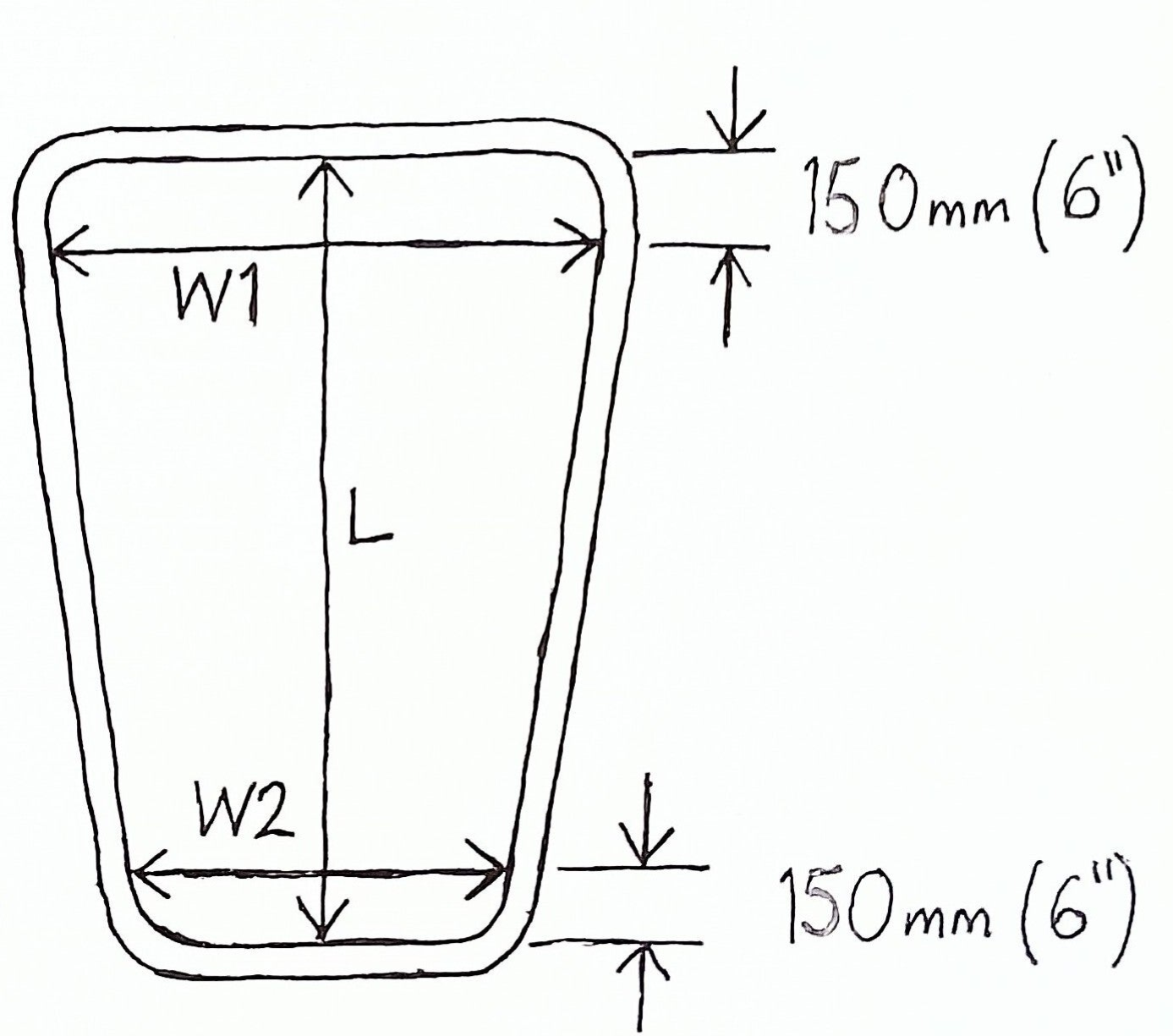

Width Measurements 1 and 2
Width 1 and Width 2 measurements are taken from 150mm (6 inches) in from each end of the bowl to avoid the curve of the wheelbarrow bowl corners.
Please remember that all measurements are taken from the inside of the bowl lip that includes the 150mm (6 inches) spacing.
